功能特點
該機融紙盒的包邊、折入,壓泡為一體,運用伺服驅動斜齒輪和凸輪完成連貫動作,穩定流暢,精密耐用,是目前相對合理的一款成型機,也是廣大禮品盒生產廠家的明智必選機型。
十大功能特點
1.主軸、分模、刷輥、折邊、壓泡全部由伺服驅動, 運轉穩定安靜。流暢快捷。
2.特有的凸輪、氣缸兩次盒體除泡功能,可根據情況選擇一次或兩次壓泡。儲氣可調式底模升降設計,對紙盒底部除泡力度可調可控。

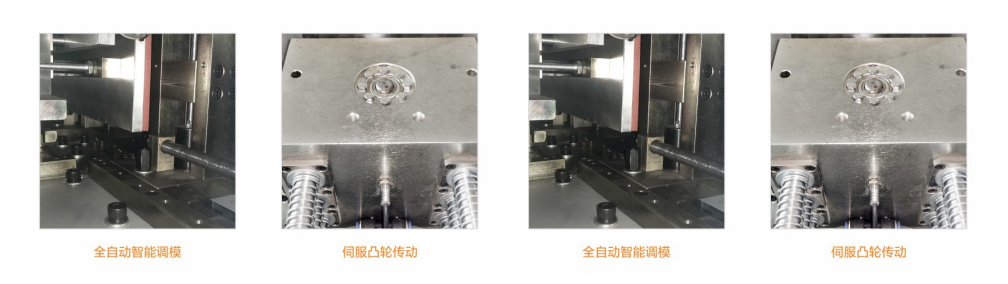

3.斜齒機構傳動主軸動作,穩定、精確、牢國、產量高使用壽命長,整機可實現播放式慢動作運行,而凸輪機構更可以獲得平穩的運動.當速度改變時也可以保持同步,調試時更容易觀察到生產過程。
4.折耳動作可做對搭80mm,導軌加氣缸,精密度高,行程可定制,能適應不同產品的生產需求。
5.真空吸盒壓力可調,大小可選不同壓力,有助于人工套盒時的順暢與速度,
6.快速換模調機設計,程序記憶功能,十五分鐘完成轉版。
7.進口光柵保護,故障報警,故障區顯示,保障運行操作的安全。
8.加厚臺板,加厚機架,CNC加工中心次完成.確保運行穩定性和裝配標準化。
9.免換折邊鏟刀和壓泡板,從小到大的紙盒都可使用,
10.調節方式可手動也可以升級為自動,鎖固方式可選配。
Functional features
This machine integrates wrapping, folding and pressing of carton into one, and uses servo driven helical gear and cam to complete continuous action. It is stable, smooth, precise and durable. It is a relatively reasonable molding machine at present, and also a wise and necessary model for the majority of gift box manufacturers.
Features
1. The spindle, parting die, brush roller, flanging and bubble pressing are all driven by servo, so the operation is stable and quiet. Smooth and fast.
2. The unique function of twice bubble removing for cam and cylinder can be selected once or twice according to the situation. The air storage adjustable bottom mold lifting design can adjust and control the defoaming force at the bottom of the carton.
3. The helical gear mechanism drives the spindle action, which is stable, accurate, reliable, high output, long service life. The whole machine can realize the slow motion operation of play type, and the cam mechanism can obtain more stable movement. When the speed changes, it can also keep synchronous, and it is easier to observe the production process during debugging.
4. The action of ear folding can be set to 80mm. The guide rail and cylinder have high precision. The stroke can be customized to meet the production needs of different products.
5. The pressure of vacuum suction box can be adjusted, and different pressures can be selected, which is conducive to the smoothness and speed of manual box setting,
6. Quick mold changing and adjusting machine design, program memory function, 15 minutes to complete version transfer.
7. Imported grating protection, fault alarm, fault area display, ensure the safety of operation.
8. Thickened platen, thickened frame and CNC machining center are completed one time to ensure operation stability and assembly standardization.
9. No need to change the folding blade and pressure foam board, which can be used from small to large cartons,
10. The adjustment mode can be manual or upgraded to automatic, and the locking mode can be selected.
